Raman Systems

Portable Raman instrument

Portable RAMS

  • Employs high throughput VPH grating spectrograph

  • Compact and lightweight

  • Battery power capability

  • Available with 532 nm or 785 nm laser excitation sources

  • Deep cooled (-60 °C) CCD detector

  • Bundled with SpectraSoft software

  • Process analysis capability using SpectraChem chemometric plug-in software

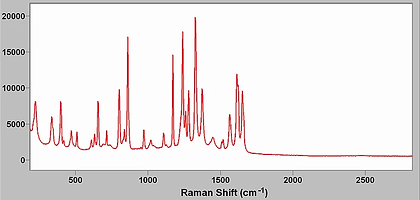

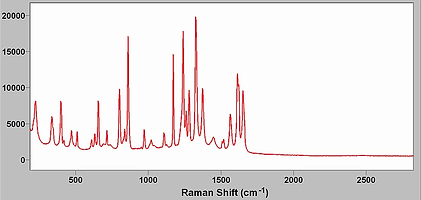

Raman spectrum of acetaminophen (Tylenol)

Figure 1. Acetaminophen (Tylenol) Raman spectrum, 1 sec. integration

Raman dark current at different CCD cooling temperature

Figure 2. Dark current at different CCD cooling temperatures,1sec. integration

Rackmount process Raman instrument

Rackmount RAMS

  • Employs high throughput VPH grating, multi-fiber input spectrograph

  • 4U or 6U rack mount enclosures

  • Multiple probes input versions (6 channels maximum) with simultaneous Raman measurements from each probe

  • Each probe connected to its own laser source

  • Deep cooled (-60 °C) CCD detector

  • Available with 532 nm, 671 nm or 785 nm laser excitation sources

  • Bundled with SpectraSoft software

  • Process analysis capability using SpectraChem chemometric plug-in software

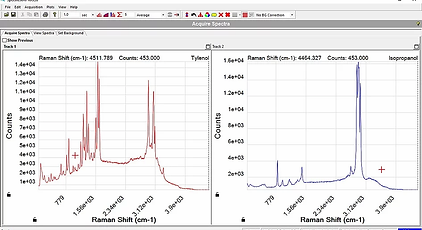

Raman spectra of 2 samples taken simultaneously with multichannel Raman instrument

Figure 3. Simultaneous analysis  of 2 samples with separate Raman probes
